Pre Cleaner Aluminium

Pre Cleaner Aluminium
Pre Cleaner Aluminium
Send Inquiry
Product Code : 21
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Specifications
  • Type
  • Air Filter
  • Material
  • Aluminium
  • Weight
  • 0.01 Kg to 100 kg
  • Dimension(L*W*H)
  • 5 inch
  • Warranty
  • Yes
Product Description

Pre Cleaner Aluminium

FEATURES

  • Stainless steel rotor
  • Cast aluminum body
  • Polished aluminum hood
  • Dual sealed Jewel ball bearings
  • Can be mounted on any angle
  • Highest CFM range [20 to 2000]

IMPROOVES

  • Reduces operating costs
  • Increases filter life
  • Improves fuel efficiency
  • Reduces emissions
  • Increases engine life

WORKING PRINCIPLE

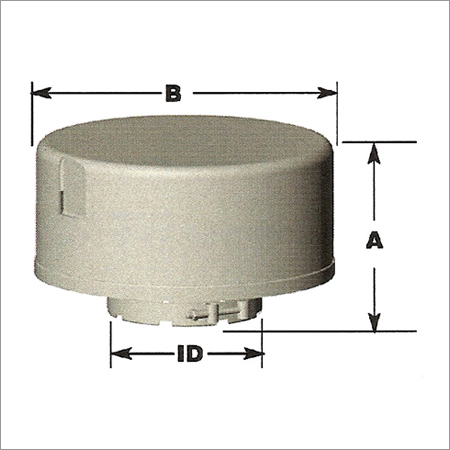

Model

Size ID

CFM*

A

B

WT.

200

2.00" [50.80]

20 - 100

3.13" [79.37]

4.75" [120.65]

0.85 Kgs

255

2.50" [63.50]

100 - 200

4.25" [107.95]

6.00" [152.40]

1.27 Kgs

330

3.00" [76.20]

140 - 350

4.75" [120.65]

8.25" [209.55]

2.12 Kgs

440S

4.00" [101.60]

140 - 350

4.75" [120.65]

8.25"[209.55]

2.12 Kgs

445

4.50" [114.30]

300 - 600

4.75" [120.65]

10.63" ]269.88]

3.39 Kgs

550

5.00" [127.00]

300 - 600

7.13" [181.10]

10.63" [269.88]

3.39 Kgs

660S

6.00" [152.40]

300 - 600

7.13' [181.10]

10.63" [269.88]

3.39 Kgs

660

6.00" [152.40]

400 - 850

7.13" [181.10]

12.25" [311.15]

3.81 Kgs

770L

7.00" [177.80]

500 - 1400

7.25" [184.15]

14.13" [358.90]

4.66 Kgs

880

8.00" [203.20]

500 - 1400

7.25" [184.15]

14.13" [358.90]

4.66 Kgs

990

8.00" [203.20]

900 - 2000

8.13" [206.50]

17.13" [435.10]

5.93 Kgs

HOW ENGINAIRE PRE-CLEANERS WORK:

1. Dirty air enters the ENGINAIRE, which is clamped onto your equipment’s air intake.

2. Specially-designed vanes, curved and angled to precisely direct air flow, move the dirty air toward the stainless steel impeller.

3. Dynamically balanced, impeller (ENGINAIRE’s only moving part) creates a tornado inside the housing.

4. The centrifugal force of the tornado expels the heavier than air dirt particles out of the discharge louver

5. ONLY clean air enters the engine intake pipe, and the filter element has only the very light particles to remove.

6 There are no external piping, valves, bowls, which can malfunction and affectthe efficiency of the enginaire pre-cleaner.

THE RESULTS

  • Cleaner Air for Equipment!
  • Longer Filter Element Life!
  • Increased Engine Life!
  • Increased Engine Performance!
  • Reduced Operating Costs!

REMOVES

  • Upto 80% of SAE Coarse Dirt and larger air-borne particles.
  • We do not like others, claim 99% of dust removal because this is impossible.
  • Be warned of false claims of above 80% removal.

SAVES

  • Upto 12 times life of fuel filter
  • Upto 3% of FUEL COSTS
  • Upto 25% lower engine maintainence
  • Upto 50% Less Engine Downtime
  • Upto 25% Increased Engine Life

ENGINAIRE'S LIFETIME WARRANTY:

ENGINAIRE carries a LIFETIME WARRANTY. This warranty does not include damage to this product from misuse, abuse, accident, or improper installation.

THE DIRT STORY - MICRO-ABRASIVE DUST IS DIRTIER THAN DIRT ITSELF:

  • Micro-abrasive dust [less than 20 microns in size] consists of tiny silicon particles that severely damage engines and drastically shorten the life of filters.
  • Newer Tier 3 and Tier 4 engines, demand ultra-clean air.
  • The product is exclusively engineered to eliminate most of the deadly micro-abrasive dust before it enters the filter.

ONLY CLEAN AIR GOES TO THE AIR FILTER:

Probably, the most important advantages of this type of pre-cleaner are that it requires no maintenance, as it is self cleaning and maintains a continuous air pre-cleaning function.

In test after test, the ENGINAIRE Pre-cleaner has exceeded every other pre-cleaner in its ability to separate harmful dust before they can even enter the air filter.

CRITICAL FACTS ABOUT AIR RESTRICTION AND PRE-CLEANER EFFICIENCY:

All self-propelled pre-cleaners are not designed in the same way nor they operate in the same manner. Such pre-cleaners vary widely in the aerodynamic design of their rotor assembly including the angle of their blades in juxtaposition to their paddles.

The design angle of the blades and the power of the rotational force are the basis of the pre-cleaner ability to filter out dust before it reaches the filter.

Pre-cleaners direct airflow in several different ways; top-down or bottom up. The manner in which a pre-cleaner directs the airflow is critically important because of the resistance caused by the re-directed air flow can impact the amount of air reaching the engine at any given time.

LESS RESTRICTION AND MORE AIR BOOSTS ENGINE POWER:

ENGINAIRE 's air- flow pre-cleaner actually lowers air resistance while maximizing the air flow for effective micro-abrasive dust elimination. A pre-cleaner should not be seen as just an add-on or an additional protection, but a vital part of your engines air filtration system.

ENGINAIRE Pre-cleaner is the only product engineered to meet any type of air- flow.

ENGINAIRE allows air to flow directly to the engine with significantly reduced restriction.

CAUTION

Precleaner selection must be based on engine airflow specifications – not on inlet tube diameter.

COMPRESSOR BENEFITS

Compressor units require large amounts of air, and are often used in most adverse conditions. Fumes from your process get sucked into the air compressor and cause trouble in the air compressor and downstream in the compressed air system. Compressor filters are very expensive. Mining compressors need to be cleaned every day. Normally cleaning is done by directing pressurized air stream into filter which damages the paper element.

REASONS FOR CHOOSING ENGINAIRE COMPARED TO OTHER PRE-CLEANERS

  • Impeller is made of Stainless Steel
  • Body is of Marine Grade Aluminium
  • Can be mounted at any angle.
  • Has Jewel ball bearing requiring no greasing.
  • OE to L&T Komatsu
  • Often used as OE fitment on CATERPILLAR abroad.

Offers THE LARGEST CFM range (ON THE LOWER & HIGHER SIDE):

  • ENGINAIRE :Offers CFM range from 3 upto 2000 CFM

  • TURBO II : Offers CFM range from 100 upto 1100 CFM

  • TURBO III : Offers CFM range from 15 upto 1100 CFM

  • POWERRAM : Offers CFM range from 50 upto 1800 CFM

  • CENTRI : Offers CFM range from 50 upto 1600 CFM
